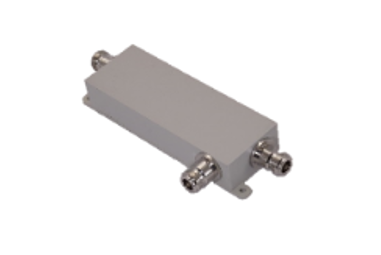

Directional Coupler | RF Retningskobling fra Kantenna.

Dekant er autorisert distributør av Kantenna i Norge.

Kantenna er et godt alternativ til gamle Kathrein. Firmaet tilbyr det meste av utendørs RF-komponenter og innendørs passive distribusjons systemkomponenter som omfatter effektive RF-nettverk for mobilkommunikasjon samt Wi-Fi-tilkoblinger og

annen radiofrekvens-tilkobling.

---

• Low Insertion Loss

• Full Range of PIM Values

• Excellent Input Power Handling

• Indoor and Outdoor Applications

• Wall Mount Bracket Included

---

Frekvens 380-2700MHz

D033XX13-V02 | D007 Frequency 380-2700MHz PIM 150dBc @2x43dBm Connector N Female Coupling Coupling Value 05 to 20 dB Datasheet

D043XX13-V02 | D008 Frequency 380-2700MHz PIM 140dBc @2x43dBm Connector N Female Coupling Coupling Value 05 to 20 dB Datasheet

---

Frekvens 380-430MHz

D0010324-V02 | D005 Frequency 380-430MHz PIM Not Specified Connector 4.3-10 Female Coupling Coupling Value 03 dB Datasheet

D0050334-V02 D006 Frequency 380-430MHz PIM Not Specified Connector 7/16 Female Coupling Coupling Value 03 dB Datasheet

---

Frekvens 698-2700MHz

D111XX24-V02 | D022 Frequency 698-2700MHz PIM 160dBc @2x43dBm Connector 4.3-10 Female Coupling Coupling Value 05 to 40 dB Datasheet

D113XX14-V02 | D023 Frequency 698-2700MHz PIM 160dBc @2x43dBm Connector N Female Coupling Coupling Value 05 to 40 dB Datasheet

D121XX24-V02 | D024 Frequency 698-2700MHz PIM 155dBc @2x43dBm Connector 4.3-10 Female Coupling Coupling Value 05 to 40 dB Datasheet

D123XX14-V02 | D025 Frequency698-2700MHz PIM 155dBc @2x43dBm Connector N Female Coupling Coupling Value 05 to 40 dB Datasheet

D131XX24-V02 | D026 Frequency698-2700MHz PIM 150dBc @2x43dBm Connector 4.3-10 Female Coupling Coupling Value 05 to 40 dB Datasheet

D133XX14-V02 | D027 Frequency 698-2700MHz PIM 150dBc @2x43dBm Connector N Female Coupling Coupling Value 05 to 40 dB Datasheet

D115XX34-V02 | D028 Frequency 698-2700MHz PIM 160dBc @2x43dBm Connector 7/16 Female Coupling Coupling Value 05 to 40 dB Datasheet

D125XX34-V02 | D029 Frequency 698-2700MHz PIM 155dBc @2x43dBm Connector 7/16 Female Coupling Coupling Value 05 to 40 dB Datasheet

D135XX34-V02 | D030 Frequency 698-2700MHz PIM 150dBc @2x43dBm Connector 7/16 Female Coupling Coupling Value 05 to 40 dB Datasheet

---

Frekvens 698-4000MHz

D325XX34-V03 | D010 Frequency 698-4000MHz PIM 155dBc @2x43dBm Connector 7/16 Female Coupling Coupling Value 05 to 20 dB Datasheet

D335XX34-V03 | D011 Frequency 698-4000MHz PIM 150dBc @2x43dBm Connector 7/16 Female Coupling Coupling Value 05 to 20 dB Datasheet

D345XX34-V03 | D012 Frequency 698-4000MHz PIM 140dBc @2x43dBm Connector 7/16 Female Coupling Coupling Value 05 to 20 dB Datasheet

D323XX14-V03 | D014 Frequency 698-4000MHz PIM 155dBc @2x43dBm Connector N Female Coupling Coupling Value 05 to 20 dB Datasheet

D343XX14-V03 | D016 Frequency 698-4000MHz PIM 140dBc @2x43dBm Connector N Female Coupling Coupling Value 05 to 20 dB Datasheet

D321XX24-V03 | D018 Frequency 698-4000MHz PIM 155dBc @2x43dBm Connector 4.3-10 Female Coupling Coupling Value 05 to 20 dB Datasheet

D341XX24-V03 | D020 Frequency 698-4000MHz PIM 140dBc @2x43dBm Connector 4.3-10 Female Coupling Coupling Value 05 to 20 dB Datasheet

D333XX14-V02 | D031 Frequency 698-4000MHz PIM 150dBc @2x43dBm Connector N Female Coupling Coupling Value 05 to 40 dB Datasheet

D331XX14-V02 | D032 Frequency 698-4000MHz PIM 150dBc @2x43dBm Connector 4.3-10 Female Coupling Coupling Value 05 to 40 dB Datasheet

D311XX24-V02 | D037 Frequency 698-4000MHz PIM 160dBc @2x43dBm Connector 4.3-10 Female Coupling Coupling Value 05 to 40 dB Datasheet

Kontakt oss i Dekant AS for mer informasjon på sales@dekant.no
